12×12 Platform Deck Build & Maintain
The 12×12 platform deck offers a versatile space for outdoor enjoyment. This guide explores various aspects, from material selection and design considerations to crucial maintenance steps, ensuring a safe and lasting structure.
We’ll delve into different dimensions and materials, weighing the pros and cons of pressure-treated lumber, composite decking, and cedar. Design styles, from modern to rustic, will be examined, along with essential installation techniques and safety precautions. Finally, we’ll cover critical maintenance procedures, common problems, and preventive measures to maximize the longevity and safety of your 12×12 platform deck.
Dimensions and Materials
Platform decks, typically 12 feet by 12 feet, are versatile outdoor living spaces. Their size and material selection are crucial factors in determining their longevity, aesthetic appeal, and overall value. Understanding the available dimensions, materials, and finishes is essential for making informed decisions.
Standard Dimensions
Different 12×12 platform deck configurations can accommodate various needs and preferences. While the core dimensions remain consistent, the exact measurements might vary based on design requirements. For instance, a 12×12 deck could have a 12′ x 12′ usable surface, or a slightly smaller footprint with a wider or narrower deck border. Measurements can be expressed in inches (144 inches x 144 inches) or centimeters (365.76 cm x 365.76 cm).
Materials Used, 12×12 platform deck
Numerous materials are suitable for constructing 12×12 platform decks. Choosing the right material depends on factors such as budget, desired aesthetics, and anticipated level of maintenance. Common options include pressure-treated lumber, composite decking, and cedar.
Pressure-Treated Lumber
Pressure-treated lumber is a cost-effective choice, readily available, and relatively easy to work with. Its treatment makes it resistant to rot and insect infestation, significantly extending its lifespan. However, it may require more maintenance than other options due to potential surface damage. The initial cost is generally lower, but ongoing upkeep, such as staining or sealing, can increase the overall expenditure over time.
Composite Decking
Composite decking offers a durable alternative to traditional wood. Its resistance to moisture, rot, and insects makes it a low-maintenance option. However, composite decking often comes with a higher upfront cost compared to pressure-treated lumber. It requires minimal maintenance, reducing the need for frequent staining or sealing. The appearance and aesthetic feel can vary from wood-like to more modern.
Cedar
Cedar, known for its natural beauty and durability, is a popular choice for outdoor structures. Its inherent resistance to rot and decay is a major benefit. The natural oils within the wood provide a degree of protection against the elements. However, cedar decks often have a higher initial cost than pressure-treated lumber. The wood may require periodic staining or sealing to maintain its appearance and longevity.
Wood Finishes
The longevity and appearance of a platform deck are significantly influenced by the chosen wood finish. Various finishes, such as stains, sealers, and paints, protect the wood from the elements and enhance its aesthetic appeal. A proper finish prolongs the deck’s lifespan and maintains its attractive appearance. Different finishes offer varying levels of protection and aesthetic qualities, influencing the overall appeal and durability.

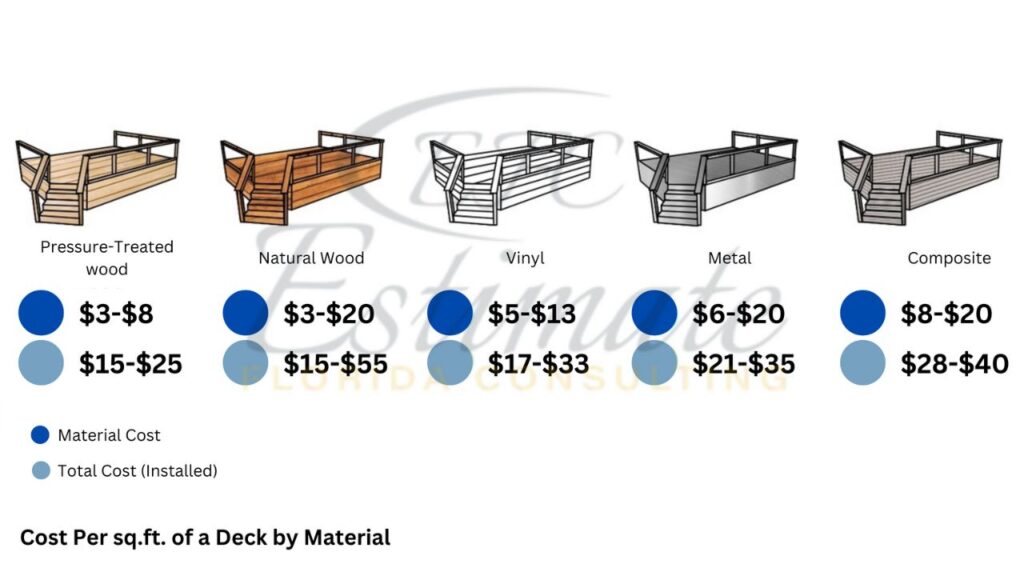

Comparison Table
| Material | Lifespan | Cost | Maintenance |
|---|---|---|---|
| Pressure-Treated Lumber | 10-15 years (with proper maintenance) | Moderate | Moderate (requires staining/sealing) |
| Composite Decking | 20-25 years (or more) | High | Low (minimal maintenance) |
| Cedar | 15-20 years (with proper maintenance) | High | Moderate (requires staining/sealing) |
Design and Installation
A 12×12 platform deck offers a versatile outdoor space for relaxation and entertainment. Careful design and installation are crucial to ensure the structure’s longevity, stability, and safety. This section details various design styles, installation methods, and essential considerations for a successful project.
Proper planning and execution are vital for a well-built 12×12 platform deck. Careful attention to support beams, framing, and railing choices directly impacts the deck’s safety and aesthetic appeal. A well-designed deck not only enhances your outdoor living experience but also adds value to your property.
Design Styles
Different design styles can transform a basic platform deck into a unique feature. Consider the overall aesthetic of your property when selecting a design. Modern styles often feature clean lines, minimalist elements, and a focus on functionality. Rustic designs embrace natural materials and textures, creating a warm and inviting atmosphere. Traditional designs incorporate classic elements, such as columns and railings, to achieve a timeless look.
Installation Methods
The installation process for a 12×12 platform deck involves several key steps. Thorough planning and adherence to building codes are paramount for a structurally sound deck. Ensuring the proper foundation and support system is essential to prevent future issues. This includes the correct use of lumber and fasteners, along with precise measurements to ensure the deck’s structural integrity.

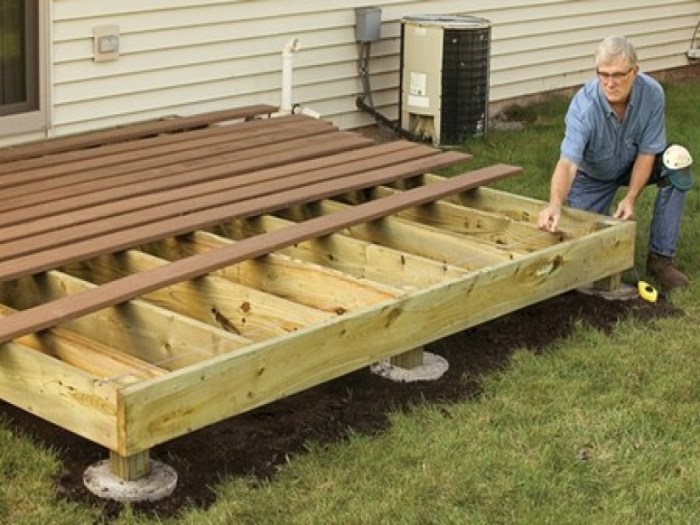

Support Beams and Framing
Proper support beams and framing are critical for a stable and safe deck. The beams should be adequately sized and spaced to distribute the load evenly across the foundation. Joists, placed perpendicular to the beams, further support the deck’s surface. The use of appropriate fasteners and securing the beams to the joists is important. The spacing and size of these beams and joists depend on the chosen materials and anticipated load. Using adequate bracing to prevent racking or twisting is critical to long-term stability.
Railing Options
Railing options are critical for safety and aesthetics. Balustrades, using vertical posts and rails, are a common choice. Solid railings offer a secure barrier, while open railings offer a more airy look. Materials like wood, aluminum, and wrought iron provide varied aesthetics. Safety considerations dictate the height and spacing of the railing to prevent falls. Compliance with local building codes is paramount.
Installation Steps
| Step | Description | Materials Needed |
|---|---|---|
| 1 | Prepare the foundation by leveling the ground and installing footings. | Leveling tools, concrete, landscape fabric, and footings |
| 2 | Construct the support beams and framing using pressure-treated lumber. | Pressure-treated lumber, nails, screws, galvanized steel plates |
| 3 | Install the deck boards, ensuring proper spacing and alignment. | Deck boards, deck screws, caulk |
| 4 | Install the railing system, following local building codes and safety guidelines. | Railing posts, railing balusters, railing material (wood, metal, etc.), screws, brackets |
| 5 | Seal and finish the deck to protect it from the elements. | Wood sealant, deck stain, deck varnish |

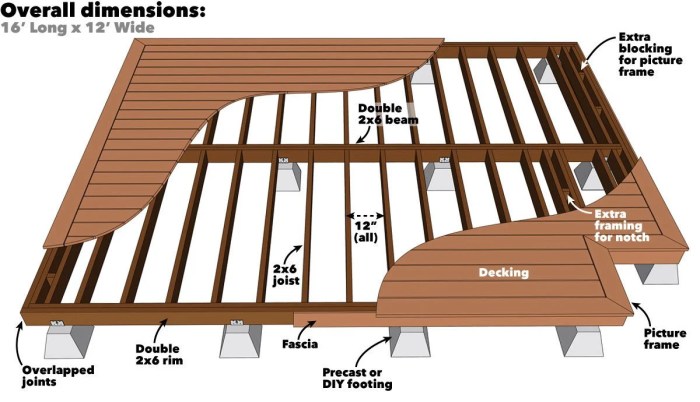

Diagram: Support Beam and Joist Placement
Imagine a rectangle representing the deck area. Four support beams, positioned at the corners of the rectangle, run vertically. These beams are secured to the footings. Joists, parallel to the deck’s width, span between the beams, forming a grid-like pattern. The deck boards are laid across these joists. This illustration demonstrates the fundamental arrangement for a stable 12×12 platform deck. Properly spaced beams and joists ensure even weight distribution.
Maintenance and Safety: 12×12 Platform Deck
Source: familyhandyman.com
Maintaining a 12×12 platform deck involves a proactive approach to prevent deterioration and ensure user safety. Regular cleaning, sealing, and inspection are crucial for longevity. Addressing potential issues like rot or warping promptly can extend the deck’s lifespan. Safety precautions and proper maintenance procedures contribute to a safe and enjoyable outdoor space.
Cleaning and Sealing Procedures
Regular cleaning and sealing are vital for preserving the aesthetic appeal and structural integrity of a 12×12 platform deck. Proper cleaning methods prevent the build-up of dirt, mildew, and other contaminants, which can accelerate deterioration. Sealing protects the wood from moisture, preventing rot and warping.
- Cleaning Frequency: Clean the deck at least once a month, or more frequently if needed, using mild soap and water. High-pressure washing can be used, but use caution to avoid damaging the wood’s surface or fasteners.
- Sealing Frequency: Seal the deck at least once a year, or more often depending on the climate and wood type. Using a quality deck sealant will prolong the deck’s life.
- Cleaning Method: Use a soft-bristled brush or a deck brush to remove dirt and debris. Rinse thoroughly with clean water and allow to dry completely before resealing.
- Sealing Method: Apply the sealant evenly using a brush or roller according to the manufacturer’s instructions. Ensure complete coverage and allow sufficient drying time. Repeat applications as needed for optimal protection.
Common Problems and Solutions
Various issues can arise with a 12×12 platform deck. Prompt identification and resolution are crucial to maintaining its structural integrity and safety. Rot, warping, and insect infestation are some of the more common problems.
- Rot: Identify rot by looking for soft spots, discoloration, or visible fungal growth. Remove the affected wood and replace it with treated lumber. Ensure proper drainage around the deck to prevent future moisture issues.
- Warping: Inspect for bowing or twisting of boards. Often, warping is linked to moisture. Ensure proper ventilation and drainage around the deck. Repairing warping involves careful removal and replacement of the affected boards.
- Insect Infestation: Look for signs of insect activity, such as holes or sawdust. Use appropriate pest control methods, such as insecticides or termite treatments. Preventative measures, such as using pressure-treated lumber, can minimize infestation risk.
Safety Precautions
Ensuring user safety is paramount when using or maintaining a 12×12 platform deck. This includes proper securing, appropriate footwear, and avoiding overloading.
- Securing the Deck: Ensure the deck is properly secured to the ground with appropriate fasteners and anchoring. This prevents slippage and falling hazards.
- Footwear: Wear appropriate footwear, such as closed-toe shoes or sandals with good traction, to prevent slipping and falls.
- Overloading: Avoid overloading the deck with excessive weight or people. Distribute weight evenly to maintain stability.
Preventing and Repairing Common Deck Damage
Regular inspection and proactive maintenance can prevent damage to a 12×12 platform deck. Addressing minor issues promptly can avoid larger problems.
- Splinters: Inspect the deck regularly for splinters and smooth any rough edges. Replace any damaged boards to prevent further injuries.
- Loose Boards: Check for loose or shifting boards regularly. Tighten or replace loose boards immediately to maintain structural integrity.
Regular Inspections and Maintenance
A proactive approach to inspection and maintenance will extend the lifespan of a 12×12 platform deck. A preventative maintenance schedule is key.
- Frequency of Inspections: Inspect the deck regularly, at least once a month. Increase frequency during high-moisture seasons.
- Maintenance Tasks: Clean, seal, and inspect the deck. Address any minor issues promptly. Check for rot, warping, or insect infestation.
Securing a 12×12 Platform Deck
Proper securing of the platform deck prevents slippage and falling. This includes ensuring adequate fasteners and proper anchoring.
- Fasteners: Use appropriate screws, nails, or other fasteners appropriate for the materials used.
- Anchoring: Ensure the deck is securely anchored to the ground. Consider using concrete anchors for added stability.
End of Discussion
Source: thesimplecraft.com
In conclusion, building and maintaining a 12×12 platform deck requires careful consideration of materials, design, and ongoing maintenance. By understanding the factors discussed, you can create a durable, attractive, and safe outdoor space that enhances your enjoyment for years to come. Proper planning and execution are key to a successful project.
